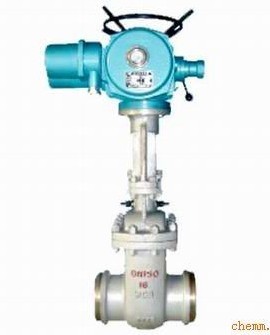

Electric vacuum gate valve DKZ941H, DKZ941 |
| Date:2015-06-27 08:54:28 |
|
|
 |
|
|
DKZ941H、DKZ941Y 型 PN10~PN100 钢制真空闸阀主要性能参数
|
|
型号
|
PN
|
工作压力/MPa
|
适用温度/℃
|
适用介质
|
|
DKZ941H-10C
|
10
|
1.0
|
≤425
|
水、蒸汽、空气
|
|
DKZ941H-16C
|
16
|
1.6
|
|
DKZ941H-25
|
25
|
2.5
|
|
DKZ941H-40
|
40
|
4.0
|
|
DKZ941H-63
|
63
|
6.3
|
|
DKZ941H-100
|
100
|
10.0
|
|
DKZ941Y-10I
|
10I
|
1.0
|
≤550
|
|
DKZ941Y-16I
|
16
|
1.6
|
|
DKZ941Y-25I
|
25
|
2.5
|
|
DKZ941Y-40I
|
40
|
4.0
|
|
DKZ941Y-63I
|
63
|
6.3
|
|
DKZ941Y-100I
|
100
|
10.0
|
|
DKZ941H、DKZ941Y 型 PN10~PN100 钢制真空闸阀零部件材料
|
|
型号
|
材料
|
|
|
阀体、闸板、阀盖
|
阀杆
|
密封面
|
填料
|
|
|
DKZ941H-10C
|
优质碳钢
|
不锈钢
|
合金钢
|
柔性石墨
|
|
|
DKZ941H-16C
|
|
|
DKZ941H-25
|
|
|
DKZ941H-40
|
|
|
DKZ941H-63
|
|
|
DKZ941H-100
|
|
|
DKZ941Y-10I
|
铬钼钢
|
铬钼钢
|
硬质合金
|
柔性石墨
|
|
|
DKZ941Y-16I
|
|
|
DKZ941Y-25I
|
|
|
DKZ941Y-40I
|
|
|
DKZ941Y-63I
|
|
|
DKZ941Y-100I
|
|
|
DKZ941H、DKZ941Y 型 PN10 钢制真空闸阀主要外形及结构尺寸（mm）
|
|
DN
|
L
|
D
|
D1
|
D2
|
b
|
z×Φd
|
f
|
H
|
电动装置型号
|
重量/kg
|
|
40
|
200
|
145
|
110
|
85
|
18
|
4×Φ18
|
3
|
670
|
DZW10A
|
92
|
|
50
|
250
|
160
|
125
|
100
|
20
|
4×Φ18
|
3
|
718
|
DZW10A
|
95
|
|
65
|
265
|
180
|
145
|
120
|
20
|
4×Φ18
|
3
|
733
|
DZW15A
|
101
|
|
80
|
280
|
195
|
160
|
135
|
22
|
4×Φ18
|
3
|
795
|
DZW20A
|
113
|
|
100
|
300
|
215
|
180
|
155
|
22
|
8×Φ18
|
3
|
860
|
DZW20A
|
132
|
|
125
|
325
|
245
|
210
|
185
|
24
|
8×Φ18
|
3
|
974
|
DZW30A
|
182
|
|
150
|
350
|
280
|
240
|
210
|
24
|
8×Φ23
|
3
|
1008
|
DZW30A
|
209
|
|
175
|
375
|
310
|
270
|
240
|
26
|
8×Φ23
|
3
|
1089
|
DZW30A
|
/
|
|
200
|
400
|
335
|
295
|
265
|
26
|
8×Φ23
|
3
|
1160
|
DZW30A
|
267
|
|
225
|
425
|
365
|
325
|
295
|
26
|
8×Φ23
|
3
|
1290
|
DZW30A
|
/
|
|
250
|
450
|
390
|
350
|
320
|
28
|
12×Φ23
|
3
|
1430
|
DZW45A
|
326
|
|
300
|
500
|
440
|
400
|
368
|
28
|
12×Φ23
|
4
|
1550
|
DZW60A
|
411
|
|
350
|
550
|
500
|
460
|
428
|
30
|
16×Φ23
|
4
|
1705
|
DZW60A
|
765
|
|
400
|
600
|
565
|
515
|
482
|
32
|
16×Φ25
|
4
|
1827
|
DZW90(I)
|
1042
|
|
450
|
650
|
615
|
565
|
532
|
32
|
20×Φ25
|
4
|
2015
|
DZW90(I)
|
1226
|
|
500
|
700
|
670
|
620
|
585
|
34
|
20×Φ25
|
4
|
2172
|
DZW120
|
1283
|
|
600
|
800
|
780
|
725
|
685
|
36
|
20×Φ30
|
5
|
2446
|
DZW120
|
1445
|
|
700
|
900
|
895
|
840
|
800
|
40
|
24×Φ30
|
5
|
3096
|
DZW250
|
-
|
|
800
|
1000
|
1010
|
950
|
905
|
44
|
24×Φ34
|
5
|
3300
|
DZW350
|
-
|
|
900
|
1100
|
1110
|
1050
|
1005
|
46
|
28×Φ34
|
5
|
3559
|
DZW500
|
-
|
|
1000
|
1200
|
1220
|
1160
|
1115
|
50
|
28×Φ34
|
5
|
3923
|
DZW800
|
-
|
|
